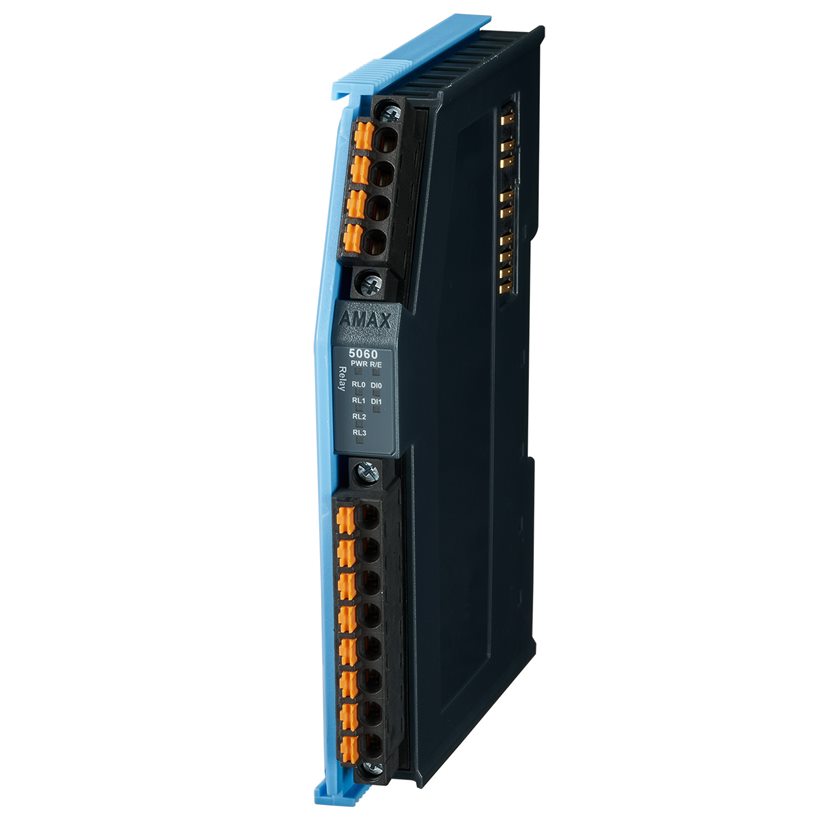

AMAX-5060-A 4-ch Relay with 2-ch DI EtherCAT Module

  1. Relay Type: Form A (SPST)
  2. Contact Rating: 250VAC @ 5A, 30VDC @ 5A
  3. Insulation Resistance: 1 GΩ (min.) @ 500 VDC
  4. Breakdown Voltage: 500VAC (50/60Hz)
恐れ入りますが、ご注文・お見積りはパソコンのみになります。

¥23,580

Make an inquiry 見積依頼
Please Select Purchase Qty X
カートに入れる
Please Select Purchase Qty X
Specifications
Category
Attribute
Value
General
Connectors
1 x 4-pin plug-in screw terminal, 1 x 8-pin plug-in screw terminal
General
Protocol
EtherCAT
Hardware
Certification
CE, FCC class A
Hardware
LED Indicators
PWR, RUN / ERROR, R0, R1, R2, R3, DI0, DI1
Hardware
Power Consumption
2.5 W @ 24 VDC
Digital Input
Channels
2
Digital Input
Digital Filter
Selectable
Digital Input
Input Voltage
Wet Contact Rated voltage: 24 VDC Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC
Environment
Isolation Voltage
2,000 VDC
Environment
Operating Temperature
-20~55 °C (-4~131 °F)
Environment
Relative Humidity
95% RH (non-condensing)
Environment
Storage Humidity
95% RH (non-condensing)
Environment
Storage Temperature
-40~85 °C (-40~185 °F)
Relay Output
Channels
4 Form A
Relay Output
Contact Rating (Resistive)
5 A @ 30 VDC, 5 A @ 250 VAC
Relay Output
Resistance
Min. 1 GΩ min.
EtherCAT
Cycle Time
100 μs
Mechanical
Dimension (W x H x D)
14.6 x 105.9 x 94.7 mm
Mechanical
Enclosure
PC
Mechanical
Mounting
DIN-rail
Mechanical
Weight (Net)
92 g
