WiFi&Bluetoothワイヤレスモジュール

Advantech provides 802.11ac/a/b/g/n modules from signal band to Dual-band WiFi with miniPCI-E or M.2 form factor. The embedded wireless modules are ready for the multi-bus interface at different OS. Advantech also provides Bluetooth 4.2 which customers exchange data from fixed and mobile devices, creating Personal Area Networks (PAN) with high levels of security.
Results per page 91872 | Sort by Price Highest / Lowest
Page 1 of 1
AIW-163BR
802.11ax+BT5.2, Realtek 8852BE, PCIe-USB, M.2
  1. IEEE 802.11ax (2.4GHz+5GHz) + BT5.2
  2. 2Tx / 2Rx
  3. RTL8852BE
  4. 22mm x 30mm x 2.2mm
  5. M.2 2230 A-E Key
  6. 0~70 degree
  7. Wi-Fi: PCIe, BT: USB
比較する More

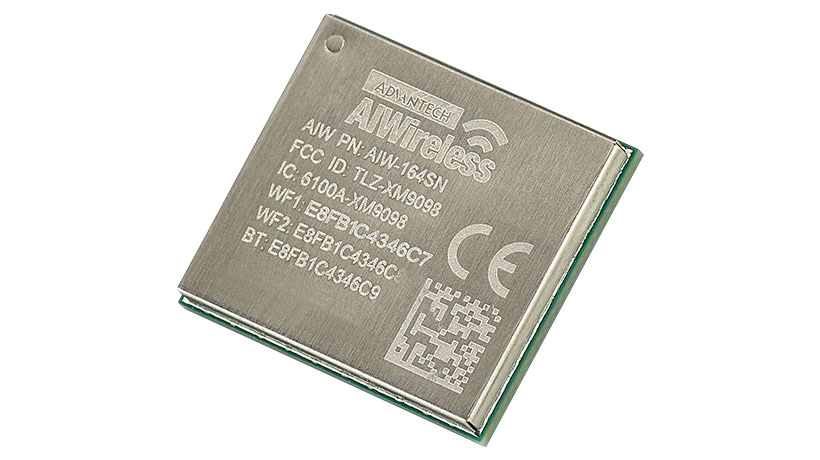

AIW-164SN
802.11ax+BT5.3 NXP 88W9098 LGA type
  1. NXP 88W9098
  2. IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz) + BT 5.3
  3. Wi-Fi: PCIe/SDIO ; Bluetooth: UART
  4. OS: Linux
  5. Operating Temp: -40 ~ 85 °C (-40 ~ 185 °F)
  6. form factor: LGA type
比較する More
AIW-165BN
industrial grade wireless module - Bluetooth 5.3, M.2 2830
  1. NXP 88W9098
  2. 2Tx/2Rx
  3. IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz) + BT 5.3
  4. M.2 2830
  5. Wi-Fi: PCI-E; Bluetooth: UART
  6. OS: Linux
  7. Operating Temp: -40 ~ 85 °C (-40 ~ 185 °F)
  8. 28 x 30 x 3.95 mm (1.10 x 1.18 x 0.15 in)
  9. IC: NXP 88W9098
比較する More
AIW-170BQ-001
WCN6856/QCA2066をベースにしたプレミアムレベルのWi-Fi 6E M.2 Key Eソリューション
  1. 産業用温度範囲(-40〜85°C)
  2. NvidiaおよびNXPプラットフォームとの互換性
  3. 追加の6GHz対応
  4. DBDC(デュアルバンド・デュアルコンカレント)対応
  5. 複数の認証取得(FCC/CE/IC/TELEC/KC/NCC)
比較する More
Page 1 of 1
